Battlers instead of Spritesets in the Menu?

Arkane609

Apprentice
Member
Joined
Jul 25, 2014
Messages
145
Reaction score
35
First Language
Tagalog
Primarily Uses
As the title suggest, is there an available script for this? I've been looking everywhere for this. Its practically the only script I need left before I can start with messing with the events. If there's no script for this, is there any alternative? I've seen different projects change the spriteset to facesets, though. I tried to change one to make it show battlers but it ended up crashing everytime I go to the menu. I decided to scrap that, lol. But yeah, I'd really REALLY appreciate it if there is such a script. :c

Thanks.


Shaz

Veteran
Veteran
Joined
Mar 2, 2012
Messages
38,258
Reaction score
11,862
First Language
English
Primarily Uses
RMMV
??? The game does not show battlers in the menu - it shows faces. You would need a script in order to show sprites instead of faces.


What size are your battlers? Have you decided how you want all the menu screens to be rearranged to accommodate the larger images?


Arkane609

Apprentice
Member
Joined
Jul 25, 2014
Messages
145
Reaction score
35
First Language
Tagalog
Primarily Uses
??? The game does not show battlers in the menu - it shows faces. You would need a script in order to show sprites instead of faces.
I'm confused. I thought these were the sprites:



And the battlers are the pictures representing the sprites during battles? In anycase, maybe I could use the script for the faces and substitute the faces with battlers? I know such script exists but all my searches ended up in dead websites, and 404's.


Andar

Veteran
Veteran
Joined
Mar 5, 2013
Messages
28,959
Reaction score
6,667
First Language
German
Primarily Uses
RMMV
Edit:


OK, misunderstanding - both Shaz and I thought you were talking about Ace...

Last edited by a moderator:

slimmmeiske2

Little Red Riding Hood
Global Mod
Joined
Sep 6, 2012
Messages
5,872
Reaction score
4,212
First Language
Dutch
Primarily Uses
RMXP
Guys, Arkane is using RMXP, which has as standard sprites in the menu. ^^;


MobiusXVI

Game Maker
Veteran
Joined
Mar 20, 2013
Messages
362
Reaction score
84
First Language
English
Primarily Uses
As the title suggest, is there an available script for this? I've been looking everywhere for this. Its practically the only script I need left before I can start with messing with the events. If there's no script for this, is there any alternative? I've seen different projects change the spriteset to facesets, though. I tried to change one to make it show battlers but it ended up crashing everytime I go to the menu. I decided to scrap that, lol. But yeah, I'd really REALLY appreciate it if there is such a script. :c

Thanks.
Arkane, it's fairly easy to swap in the battlers, but the battler graphics are bigger than the standard character sprites. So, if you want to use battlers you'll need to either redesign the layout of the menu so that they can fit or use smaller versions of the battler graphics. The default characters are 32*48 pixels, while most battlers are about 150*200.

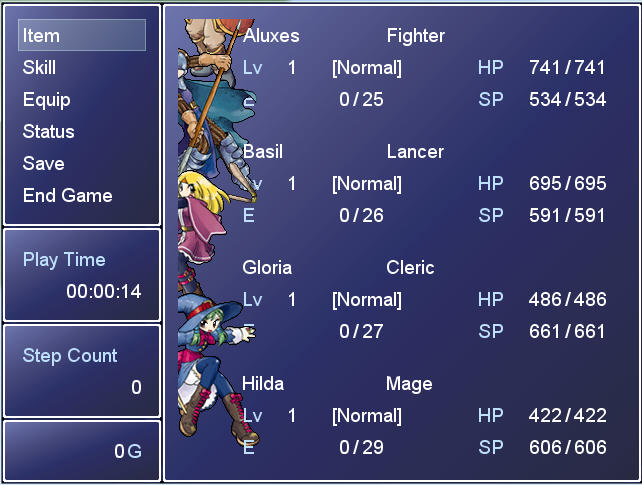

EDIT: This should show what I'm talking about


Last edited by a moderator:

Arkane609

Apprentice
Member
Joined
Jul 25, 2014
Messages
145
Reaction score
35
First Language
Tagalog
Primarily Uses
Arkane, it's fairly easy to swap in the battlers, but the battler graphics are bigger than the standard character sprites. So, if you want to use battlers you'll need to either redesign the layout of the menu so that they can fit or use smaller versions of the battler graphics. The default characters are 32*48 pixels, while most battlers are about 150*200.

EDIT: This should show what I'm talking about

Resizing them isn't really a problem. Though, how'd you do that? I'm so jelly right now. D:


Shaz

Veteran
Veteran
Joined
Mar 2, 2012
Messages
38,258
Reaction score
11,862
First Language
English
Primarily Uses
RMMV
Oh, sorry. That explains everything.


The sprites are 32x48 pixels. If you can reduce or crop your battlers to about the same size, you can just insert those images and not have to make any other changes to the script for layout.


I don't have XP with me right now, but I suspect it's pulling the sprite from the top left corner of the spritesheet, so there WOULD be a small script change to make it take the image from somewhere else.


MobiusXVI

Game Maker
Veteran
Joined
Mar 20, 2013
Messages
362
Reaction score
84
First Language
English
Primarily Uses
Resizing them isn't really a problem. Though, how'd you do that? I'm so jelly right now. D:
Ok, so the class Window_MenuStatus calls the method "draw_actor_graphic" which lives in the class Window_Base since other windows call it as well (like Window_Status). All I did was define my own version of that method in the Window_MenuStatus class so that way it calls the custom one.

class Window_MenuStatus < Window_Selectable #-------------------------------------------------------------------------- # * Draw Graphic # actor : actor # x : draw spot x-coordinate # y : draw spot y-coordinate #-------------------------------------------------------------------------- def draw_actor_graphic(actor, x, y) bitmap = RPG::Cache.battler(actor.character_name, actor.character_hue) cw = bitmap.width #/ 4 ch = bitmap.height #/ 4 src_rect = Rect.new(0, 0, cw, ch) self.contents.blt(x - cw / 2, y - ch, bitmap, src_rect) end end
By default the x and y coordinates passed to the method are the centered x coordinate and the bottom y coordinate of the available space, so like this...

----------

|           |

|           |

|           |

---x,y---

So, when you go to draw you should slide your x to the left by half the sprite width, and slide your y up by the full sprite width.

Also Shaz is correct, the orignal method pulls the sprite from the top left corner of the sheet. If you look in the code above, you'll see I commented out "/4". That's what cuts the spritesheet down. Obviously, I also changed it to pull in the battler rather than the character sprite, and that was done by changing "RPG::Cache.character" to "RPG::Cache.battler". If you need more help figuring this out, let me know.

Last edited by a moderator:

Arkane609

Apprentice
Member
Joined
Jul 25, 2014
Messages
145
Reaction score
35
First Language
Tagalog
Primarily Uses
Ok, so the class Window_MenuStatus calls the method "draw_actor_graphic" which lives in the class Window_Base since other windows call it as well (like Window_Status). All I did was define my own version of that method in the Window_MenuStatus class so that way it calls the custom one.

class Window_MenuStatus < Window_Selectable #-------------------------------------------------------------------------- # * Draw Graphic # actor : actor # x : draw spot x-coordinate # y : draw spot y-coordinate #-------------------------------------------------------------------------- def draw_actor_graphic(actor, x, y) bitmap = RPG::Cache.battler(actor.character_name, actor.character_hue) cw = bitmap.width #/ 4 ch = bitmap.height #/ 4 src_rect = Rect.new(0, 0, cw, ch) self.contents.blt(x - cw / 2, y - ch, bitmap, src_rect) end end
By default the x and y coordinates passed to the method are the centered x coordinate and the bottom y coordinate of the available space, so like this...

----------

|           |

|           |

|           |

---x,y---

So, when you go to draw you should slide your x to the left by half the sprite width, and slide your y up by the full sprite width.

Also Shaz is correct, the orignal method pulls the sprite from the top left corner of the sheet. If you look in the code above, you'll see I commented out "/4". That's what cuts the spritesheet down. Obviously, I also changed it to pull in the battler rather than the character sprite, and that was done by changing "RPG::Cache.character" to "RPG::Cache.battler". If you need more help figuring this out, let me know.
Ah, there we go! It works now! Thanks a ton! Now I can start the events and stuff!
