Orange Overlay v1.1.4 + Animated Parallax Add-On (Updated 7Jul17)

Discussion in 'JS Plugin Releases (RMMV)' started by Tsukitsune, Jul 7, 2017.

  1. Tsukitsune

    Tsukitsune Veteran Veteran

    Messages:
    835
    Likes Received:
    637
    First Language:
    English
    Orange Overlay + Animated Parallax Add-on
    [​IMG]
    Orange Overlay 1.1.4 - Plugin DL - (Updated 7July17)
    With permission from Hudell and thanks to Chaucer for the plugin fix, here's an updated version of Orange Overlay. This version fixes the broken plugin commands people were experiencing when trying to change parallaxes via events.

    Instructions from the original thread.
    Animated Parallax Add-on - Plugin DL - (Updated 12Aug17) - Thanks @Krimer for the latest update!
    Rejoice parallax mappers! You can now have animated water!
    This plugin adds to the Orange Overlay plugin, and allows you to animate overlay images.
    ==============================================================================
    INSTRUCTIONS :
    ==============================================================================
    Naming Images :
    When naming the animated images, please include _ followed by the index of the image, please take note that the index will always start on 0 and NOT 1, so please name images accordingly
    ( example : example_1, example_2, example_3, etc.. ).

    [​IMG]

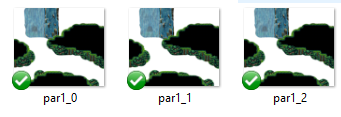

    Example of how the 3 frame images would be set up in your parallax folder.
    par(layertype), 1(map#), _0(frame#).

    Changing animated layers:
    When changing a layer that is animated via plugin command(example: Overlay ground ground1-v1 ), do NOT include _0, as this plugin will do so on it's own.

    Map Note Tags:
    Code:
    <animate_parallax: f, s > : *parallax layer will animate upon map entry.
    <animate_shadow: f, s > : *shadow layer will animate upon map entry.
    <animate_ground: f, s > : *ground layer will animate upon map entry.
    <animate_light: f, s > : *light layer will animate upon map entry.
    (ex. <animate_parallax: 3, 10 > -- This will animate the par layer with 3 image frames at a speed of 10fps.)

    keys:
    f = the amount of frames( or images ), that will be used.
    s = the amount of frames that must pass before changing frames.

    Plugin Commands:
    Code:
    animate_layer l f s
    Description : tell a layer to start animating.
    (ex.) animate_layer ground 3 10

    Code:
    change_layer_speed l s
    Description : change the speed of a given layers animation.

    Code:
    stop_layer_animation l
    Description : tell a layer to stop animating.

    keys:
    f = the amount of images used in the animation.
    l = the name of the layer( ground, parallax, shadow, light ).
    s = the amount of frames that must pass before changing frames.
    ----------------------------------------------------------------------------------------------------------------------------
    Bugfixes: Please post all bugs you encounter in the thread. I'll try to keep this plugin updated and bug free.
    ----------------------------------------------------------------------------------------------------------------------------
    Terms of Use
    Orange Overlay

    Credit: Hudell and Chaucer
    Same rights as original-Free to use on any game

    Tsukitsune Animated Overlay Add-on
    Do not share on any other site without permission
    Free for use on any game
    Edits are allowed
    and please support my project <3
    [​IMG]

    Last edited: Aug 13, 2017
    #1
  2. beenbaba

    beenbaba Slowly getting there Veteran

    Messages:
    289
    Likes Received:
    157
    Location:
    England
    First Language:
    English
    Awesome, thank you!

    #2
  3. Plueschkatze

    Plueschkatze Veteran Veteran

    Messages:
    513
    Likes Received:
    1,512
    First Language:
    German
    Primarily Uses:
    N/A
    This sounds awesome! I'll test it out.
    Thanks for sharing this!

    Now I'd only need the par layer of orange overlay to be one lower than the highest possibile layer of YEP's Doodads and I'd be perfectly happy (so that it is possible to have moving lights and fire sprites and stuff like that on top of the par layer~)

    #3
    SoSick. likes this.
  4. beenbaba

    beenbaba Slowly getting there Veteran

    Messages:
    289
    Likes Received:
    157
    Location:
    England
    First Language:
    English
    I'm not sure if the 'overlay fadeout duration' is working or not, doesn't seem to work for me, would someone be able to confirm if it works for them please?

    #4
  5. Tsukitsune

    Tsukitsune Veteran Veteran

    Messages:
    835
    Likes Received:
    637
    First Language:
    English
    @beenbaba Overlay fadeout duration only removes the fogs through the map notetags or Overlay fog event commands, not the Overlay addfog commands.
    But it works.

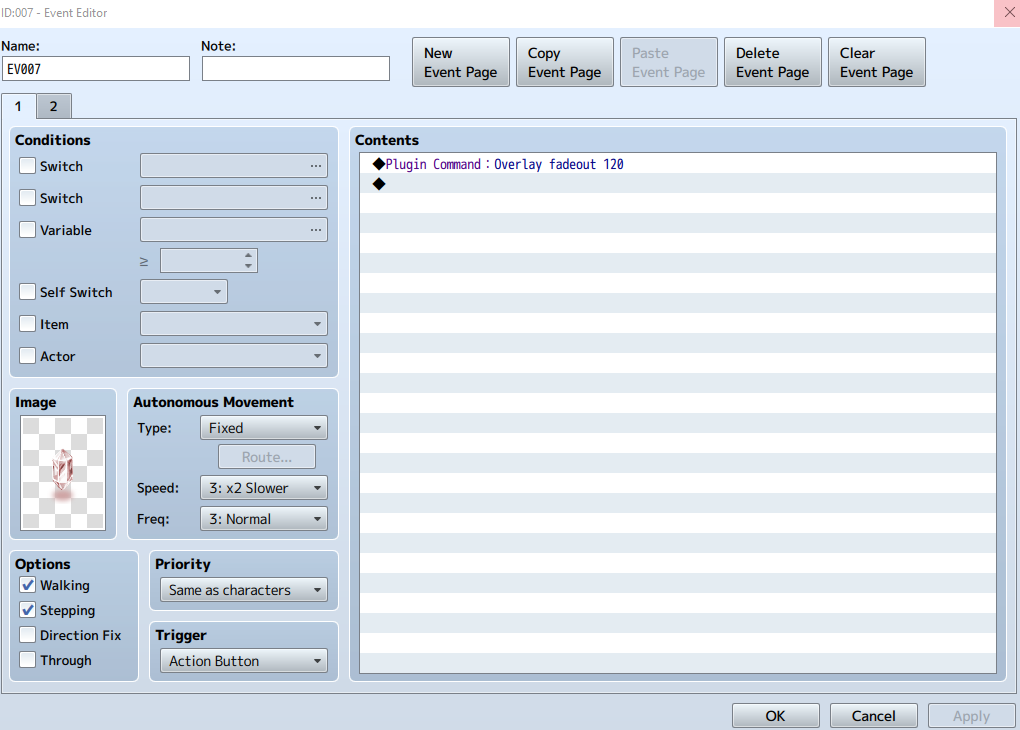

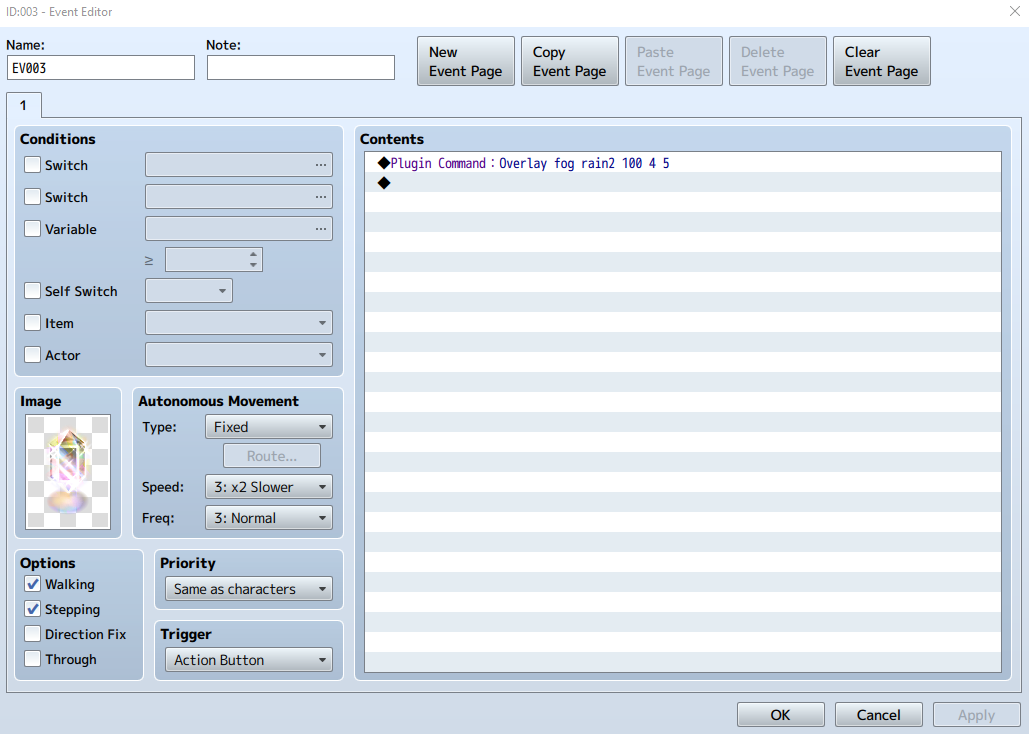

    Try these as an example.
    [​IMG]
    [​IMG]

    #5
  6. beenbaba

    beenbaba Slowly getting there Veteran

    Messages:
    289
    Likes Received:
    157
    Location:
    England
    First Language:
    English
    @Tsukitsune ah right, I'll give that a try and see what happens, thanks :)

    #6
  7. Tsukitsune

    Tsukitsune Veteran Veteran

    Messages:
    835
    Likes Received:
    637
    First Language:
    English
    Plugins have been updated to 1.1.4 to fix some issues with overlays and fogs reappearing/disappearing when the menu opens and closes. Same with some issues relating to them not disappearing when the respective switches were turned off.

    #7
    Rhino likes this.
  8. Rhino

    Rhino ~Inactive~ Veteran

    Messages:
    482
    Likes Received:
    782
    First Language:
    English
    Primarily Uses:
    RMMV
    Fog is working perfectly now, thank you so much! :kaojoy::kaoluv:

    #8
  9. Arcmagik

    Arcmagik Game Developer Veteran

    Messages:
    489
    Likes Received:
    638
    Location:
    VA
    First Language:
    English
    Primarily Uses:
    RMMV
    Well thank you!!

    #9
  10. SoSick.

    SoSick. Veteran Veteran

    Messages:
    216
    Likes Received:
    179
    Location:
    UK
    First Language:
    english
    Primarily Uses:
    RMMV
    this is great man! thanks for doing this! any chance in the future will be able to put doodads above the par layer? thanks

    #10
  11. Plueschkatze

    Plueschkatze Veteran Veteran

    Messages:
    513
    Likes Received:
    1,512
    First Language:
    German
    Primarily Uses:
    N/A
    I think I'll check how expensive it would be to fix that YEP doodad issue. Would it be OK to alter this updated plugin version of orange overlays? :)
    Or would Chaucer be willing to look into this issue?

    It would be awesome if the par layer would be one below the highest possible doodaslayer, so that we can put stuff above the par layer. (fire, lights, particles, whatever)

    #11
    SoSick. likes this.
  12. Tsukitsune

    Tsukitsune Veteran Veteran

    Messages:
    835
    Likes Received:
    637
    First Language:
    English
    Chaucer did make a mod to Yanfly's doodad to allow the highest layer (10) to appear above Par layers. I don't think I can publicly share edits to Yanfly's plugins so I won't post it here. If you need it, send me a message.

    #12
    Plueschkatze and SoSick. like this.
  13. Mrludo

    Mrludo Villager Member

    Messages:
    9
    Likes Received:
    0
    First Language:
    français
    Primarily Uses:
    RMMV
    Hello, it my impossible to make your plugin work, please help me

    #13
  14. Kes

    Kes Global Moderators Global Mod

    Messages:
    20,400
    Likes Received:
    10,415
    First Language:
    English
    Primarily Uses:
    RMVXA
    @Mrludo People will need some detail if anyone is to help you.
    What exactly is not working? What happens or does not happen? Did you remember to start a New Game after installing the plugin? You need to describe your problem, because people cannot possibly guess what it might be.

    #14
  15. Mrludo

    Mrludo Villager Member

    Messages:
    9
    Likes Received:
    0
    First Language:
    français
    Primarily Uses:
    RMMV
    Ok so here's my problem:

    I have OrangeOverlays.js with which I work (I create folders (pars, grounds, lights, fogs, shadows))
    This plugin works very well.

    I find here the plugin Tsukitsune_animatedOverlayAddon.js
    And the disaster "lol"

    I do not know or place my images (EX: light3_0, light3_1, light3_2)

    Or do I badly edit the names of my images?

    #15
  16. Plueschkatze

    Plueschkatze Veteran Veteran

    Messages:
    513
    Likes Received:
    1,512
    First Language:
    German
    Primarily Uses:
    N/A
    Did you add the map notetags @Mrludo?

    <animate_parallax: f, s > : *parallax layer will animate upon map entry.
    <animate_shadow: f, s > : *shadow layer will animate upon map entry.
    <animate_ground: f, s > : *ground layer will animate upon map entry.
    <animate_light: f, s > : *light layer will animate upon map entry.

    #16
  17. Tsukitsune

    Tsukitsune Veteran Veteran

    Messages:
    835
    Likes Received:
    637
    First Language:
    English
    @Mrludo
    You're going to have to describe in detail what you're doing. Is there an error that is being shown? What exactly isn't working? I'm assuming you're trying to animate a layer but which layer and what plugin commands are you using?

    #17
  18. Mrludo

    Mrludo Villager Member

    Messages:
    9
    Likes Received:
    0
    First Language:
    français
    Primarily Uses:
    RMMV
    So here is

    [​IMG]
    My images are (light3, light3_0, light3_1, light3_2)

    [​IMG]

    [​IMG]


    So my light appears but does not move.

    #18
  19. Tsukitsune

    Tsukitsune Veteran Veteran

    Messages:
    835
    Likes Received:
    637
    First Language:
    English
    Looks like the light layer is bugged, I'll have to have it looked at. In the meantime you can just use the Par layer and lower the Opacity in photoshop.

    #19
  20. Mrludo

    Mrludo Villager Member

    Messages:
    9
    Likes Received:
    0
    First Language:
    français
    Primarily Uses:
    RMMV
    I spent a good part of the night doing test, I'm sorry but your plugin does not work.
    This is how I proceed :

    [​IMG]
    OrangeOverlay works very well

    Now the file ground because i test with it if
    [​IMG]

    So I have ground3, ground3_0, ground3_1, ground3_2
    I am obliged to keep ground3 because otherwise OrangeOverlay tells me an error
    Is I have done everything as it is said on your page is nothing of it does not even happen a mistake like what images miss ?????
